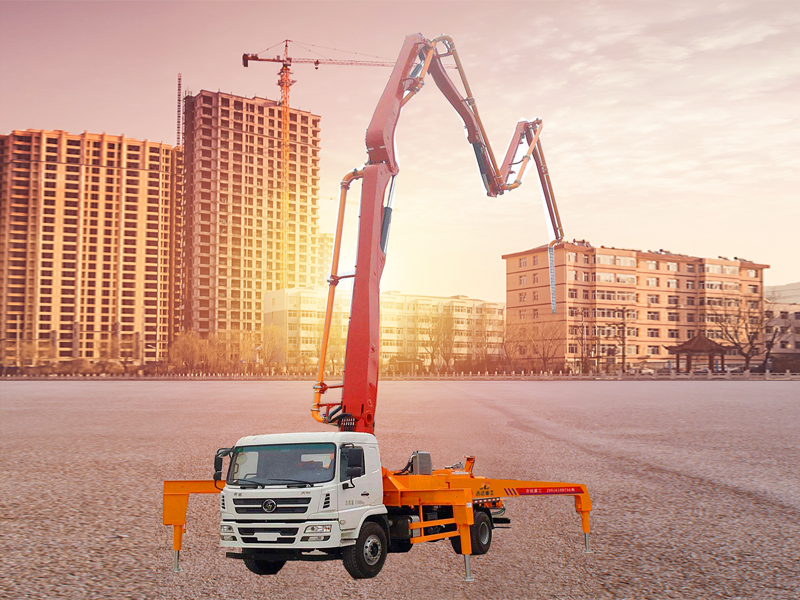

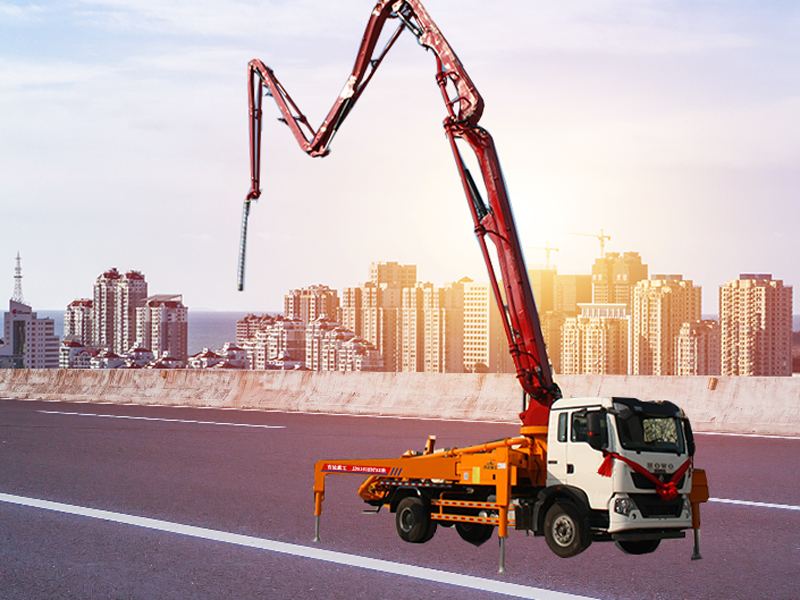

56米泵车
56米泵车
  • 产品名称:

    56米泵车

  • 产品描述:
    56米泵车操作轻松自如,符合人体工程学原理,造型美观。无线遥控采用阿波罗无线遥控器。..
  • 相关标签:

在线订购

产品详情





电控系统

Electronic control system


电器系统自动化程度高,可靠性强,主要电器采用施耐德。

配备面板控制和无线遥控两种操作装置,操作轻松自如,符合人体工程学原理,造型美观。无线遥控采用阿波罗无线遥控器。

设有多种警报装置,使机器工作时具有极高的可靠性。


Electric System is highly automated and reliable.And the major electrical devices are from Schneider.

Ihe erectronic control system is equipped with two kinds of control devices:board control device and wireless remote contral device,whnich aro witn the Features of easy operation,user-friendly ergonomics,and nice appearance.Thereinto.the wireless remote control devices are Apollo wireless remote control devices.

The electronic control system is equipped with several warning devices which can ensure high safety during machinery working.

-------------------------------------------------------------------------------------------

臂架系统

Boom system


通过有限元分析、动力学分析计算和试验、以准确的数据支持为基础。

采用高强度低钛合金钢板、所有的材料与焊缝均通过100%无损探伤,确保臂架可靠性。臂架为" R"型,臂架速度五级调节,带压力补偿,负载敏感的控制系统,使臂架运行速度快慢自如,操作性能良好。


Boom system is based on accurate data from the finite element analysis,dynamic analysis and test.

Boom system is produced with imported high-strength low-titanium alloy steel.All material and its welds pass the 100%nondestructive inspection to ensure the safety and reliability of boom.

The boom is equipped with control system with functions of pressure compensation and load sensing.And the R-shaped boom can be adjusted in five grades of speed.So the boom can run in proper speed and can be perfectly operated.

-------------------------------------------------------------------------------------------

分动箱系统

Transfer case system


分动箱就是将发动机的动力进行分配的装置,充分利用底盘发动机代替外加动力,达到节能的作用。

Transfer case is the device which distributes the engine power.lt can transfer the power from the engine on chassis so that the power from additional engine can be taken place of,and energy can be saved and utilized efficiently.

-----------------------------------------------------------------------------------------


料斗

Hopper

经过有限分析设计,料斗壁厚,结实,不易变形,从而提高砼泵及活塞的使用寿命。

圆弧形设计,无死角区 .提高吸料性,减少砼料堵管现象。

搅拌轴、S管出料口和小端总成为双重密封结构,防止了水泥浆对元件的腐蚀、磨损。

Designed with finite element analysis,the hopper is thick,strong,and good in dimension stability.As a result,the service life of the concrete pump

and piston can be prolonged.

The arc-shaped design of hopper can avoid blind corners.As a result,its performance of the concrete transferring can be improved,and the

frequency of concrete blocking-up can be reduced.

Stirring shaft and S-shaped outlet and small end assembly are double-sealing structured,to prevent the components from corroded and abraded by

cement paste.

-------------------------------------------------------------------------------------------

多路阀设置

Multi-way valve device


采用负载敏感式多路阀,提高管架操作时的稳定性。

The best loading-sensing multi-way values are used to improve the stability during the boom operation.

-------------------------------------------------------------------------------------------

泵组

The pump group


采用川崎主油泵桑尼士主油泵,油泵采用电控排量方式.操作方便简单,泵送速度可调。

The pump group is constituted by imported Kawasaki main oil pumps or Sonny exroth main oil pumps.The emission load of each main oil pump is electronic controlled,so the operation is convenient and easy,and the speed of the stransfering can be adjusted.

-------------------------------------------------------------------------------------------




主要指标参数the Main technical parameters
名称参数单位JD5161HBT48JD5161HBT52JD5161HBT56
输送量 Max.outputM3/h506060-80
混凝土出口压力 Max.pressure of concrete outletMpa13/7.613/7.613/7.6
额定工作压力 Rated working voltageMpa31.531.531.5
泵送频率 Pumping frequencytimes/min16/2523/2823/28
料斗容积 Hopper volumeM30.60.60.6
上料高度 Feeding heightmm145015001500
液压系统型式 Hydraulic system mode-开式open开式open开式open
分配阀行式 Transfer type-S管阀S-valveS管阀S-valveS管阀S-valve
油缸缸径 Cylinder diametermmΦ125Φ125Φ125
混凝土缸径 Concrete cylinder diametermmΦ200Φ200Φ230
液压油冷却 Oil pressure cooling way
风冷    Air cooling
泵车臂架  Pump truck boom
布料高度 Max .placing heightm485256
回转角度 Rotation angle°540540540
展臂角度 Elevation angle°90°/180°/360°90°/180°/360°/540°90°/180°/360°/720°
臂节数量 The number of boom345
底盘及整车 Chassis and vehicle
底盘型号 Chassis mode
东风 dongfeng豪沃/陕汽HOWO/SHANQI
轴距 Wheel basemm47004700/52005200
发动机功率 Motor powerKw160195228
排放标准 Emission standard
国VI国VI国VI
其他 Other
液压油箱容积 Oil tankL450500
水箱容量 Water tankL300
润滑方式 Lubrication mode
      集中自动润滑Centralized  lubrication
控制方式 Control mode
手动+无线遥控     Manual+radio
主液压元件 Main hydraulic component
lmported
